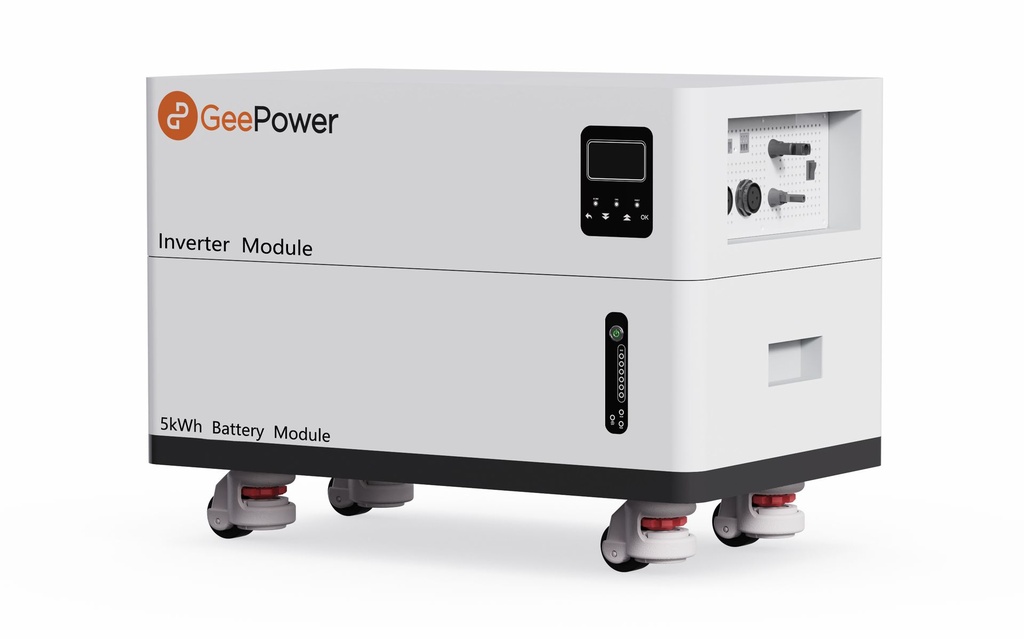

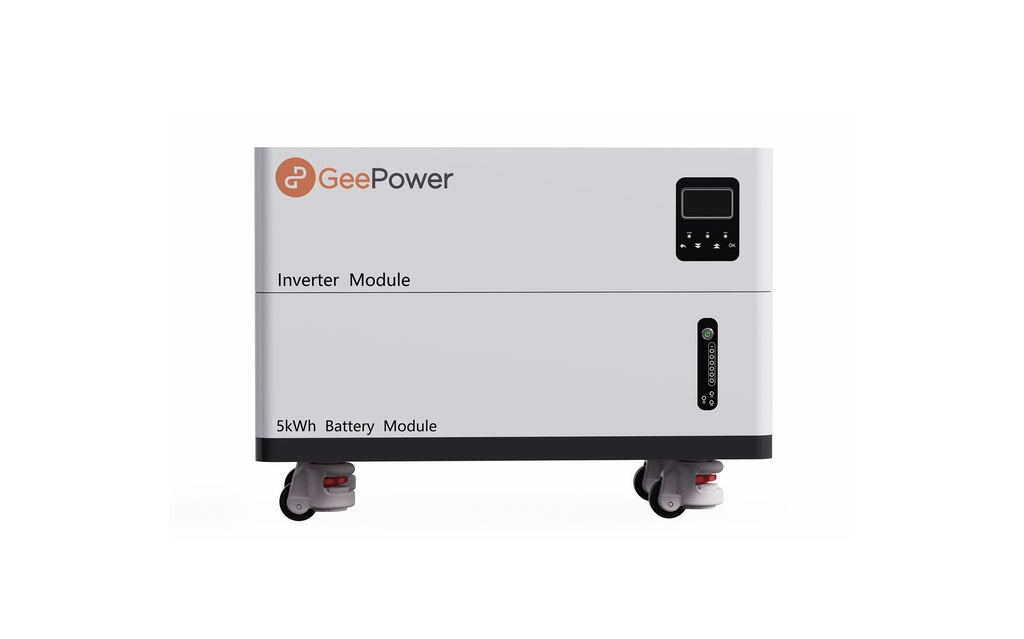

Terra A-Series 5–30 kWh Residential ESS – Safe LiFePO4 Battery with Smart Scheduling

https://www.geepoweress.com/web/image/product.template/3490/image_1920?unique=f4fab80

Available Capacities: 5 kWh | 10 kWh | 15 kWh | 20 kWh | 25 kWh | 30 kWh

  • Grid & Solar Ready – Charges from the grid during off-peak periods and supports solar energy integration.
  • Smart Scheduling – User-defined charging/discharging to optimise energy costs.

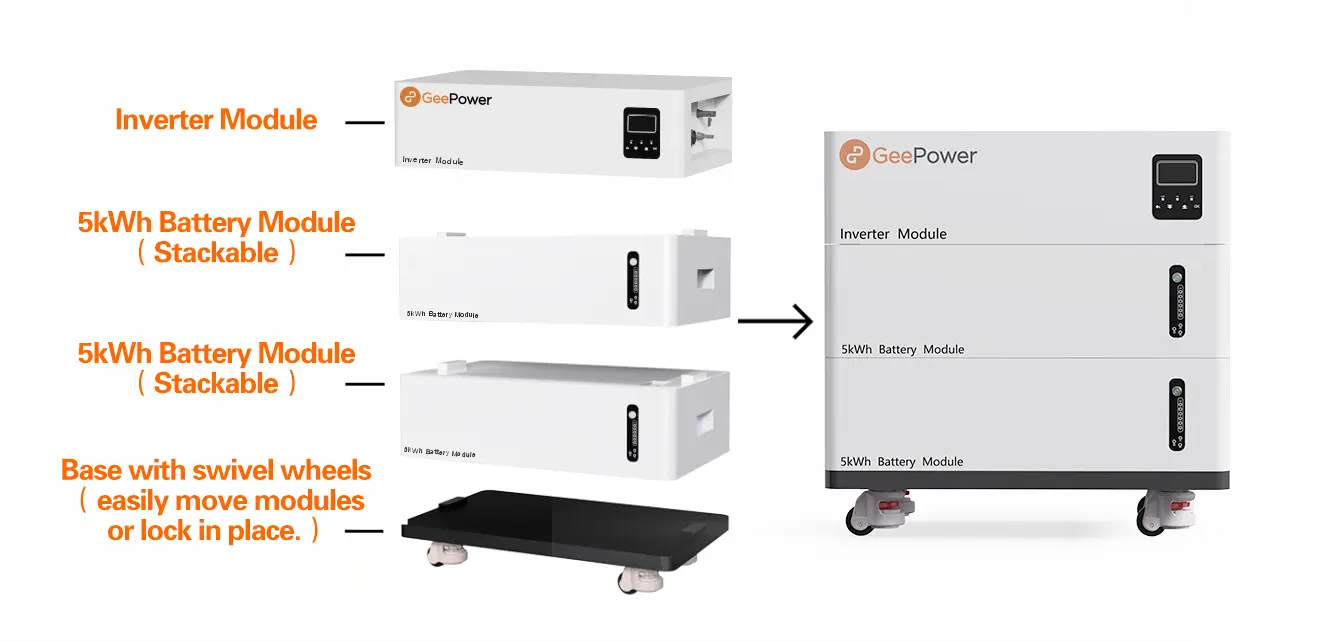

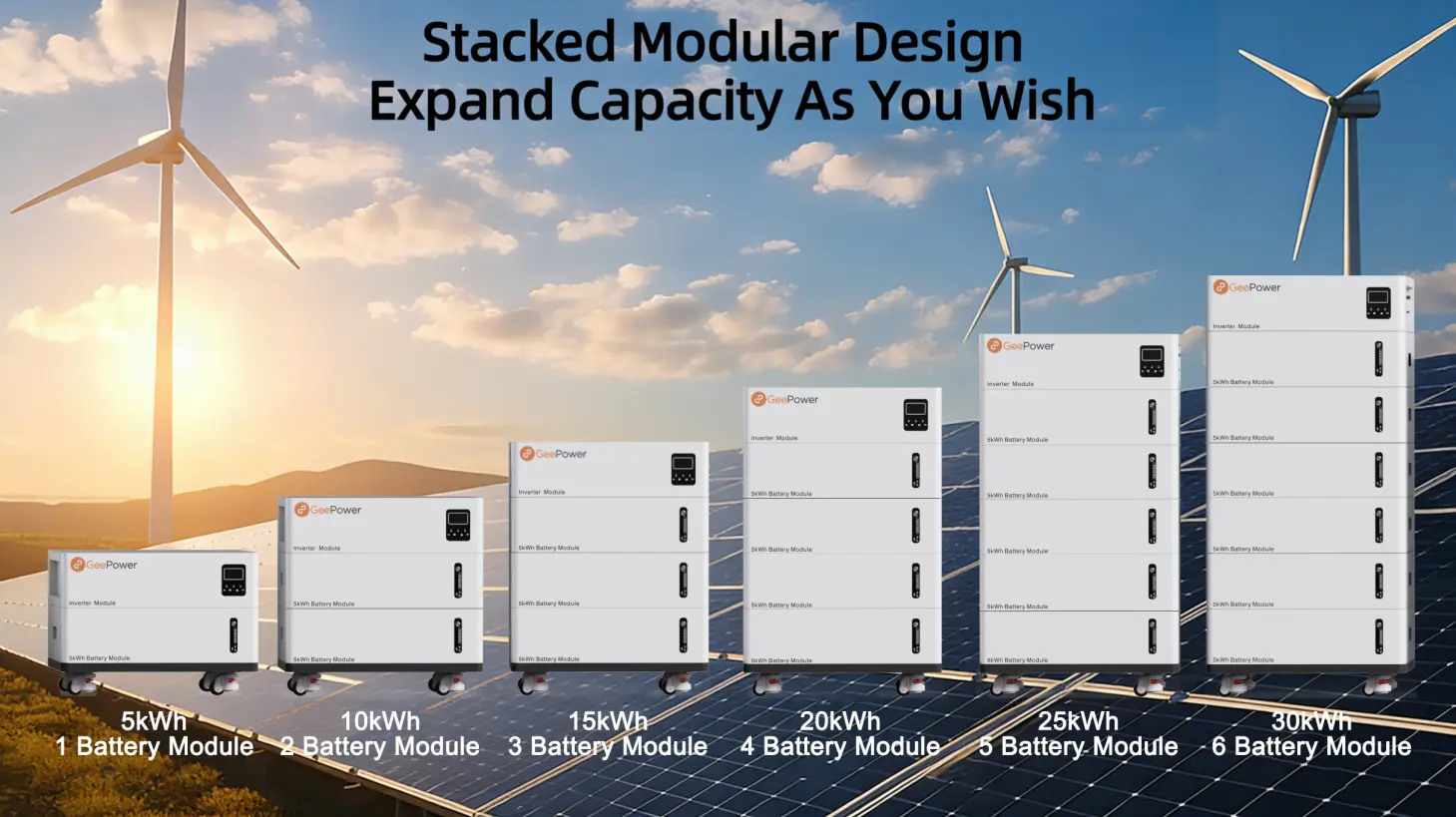

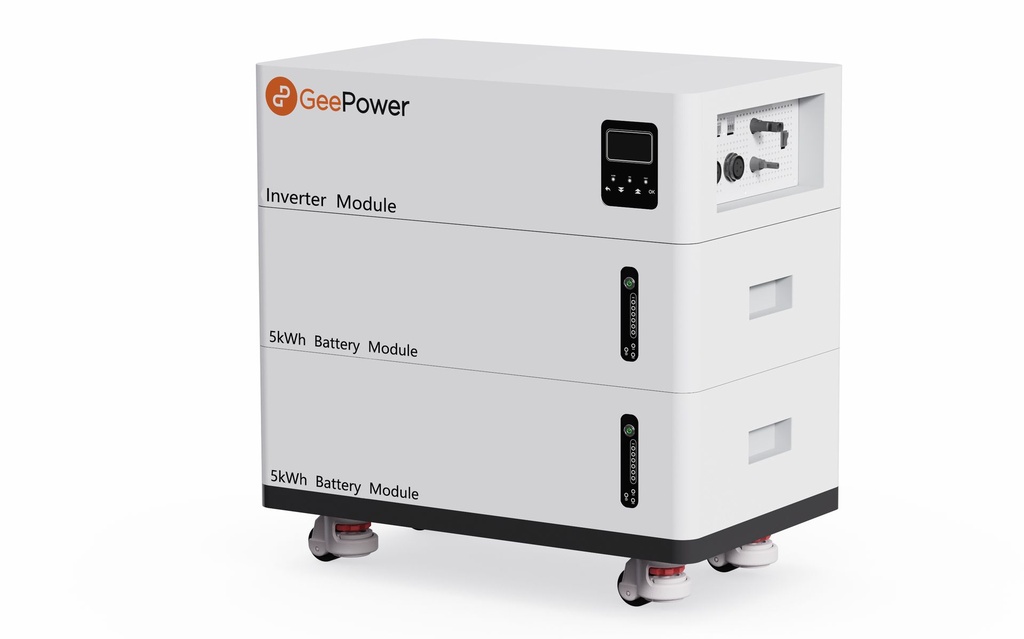

  • Modular & Scalable – Stackable design allows capacity expansion from 5 kWh to 30 kWh without rewiring.
  • Backup Power – Supplies essential household loads automatically during grid outages.
  • Safe LiFePO4 Chemistry – Thermally stable, low-maintenance, long-life battery for up to 15 years.
  • Built-in Fire Suppression – Each module has its own automatic fire protection system.
  • Integrated Inverter with Dual MPPT – Optimises solar energy usage while ensuring high-efficiency power conversion.
  • Pure Sine Wave Output – Protects sensitive home electronics with clean, stable power.
  • Remote Monitoring & Control – Track energy usage and configure schedules via inverter interface.

¥ 1.00 1.0 CNY ¥ 1.00

¥ 1.00

Not Available For Sale

  • 5KWh

This combination does not exist.

Contact Us
5KWh: 5KWh

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Save Money. Save Energy. Stay in Control.

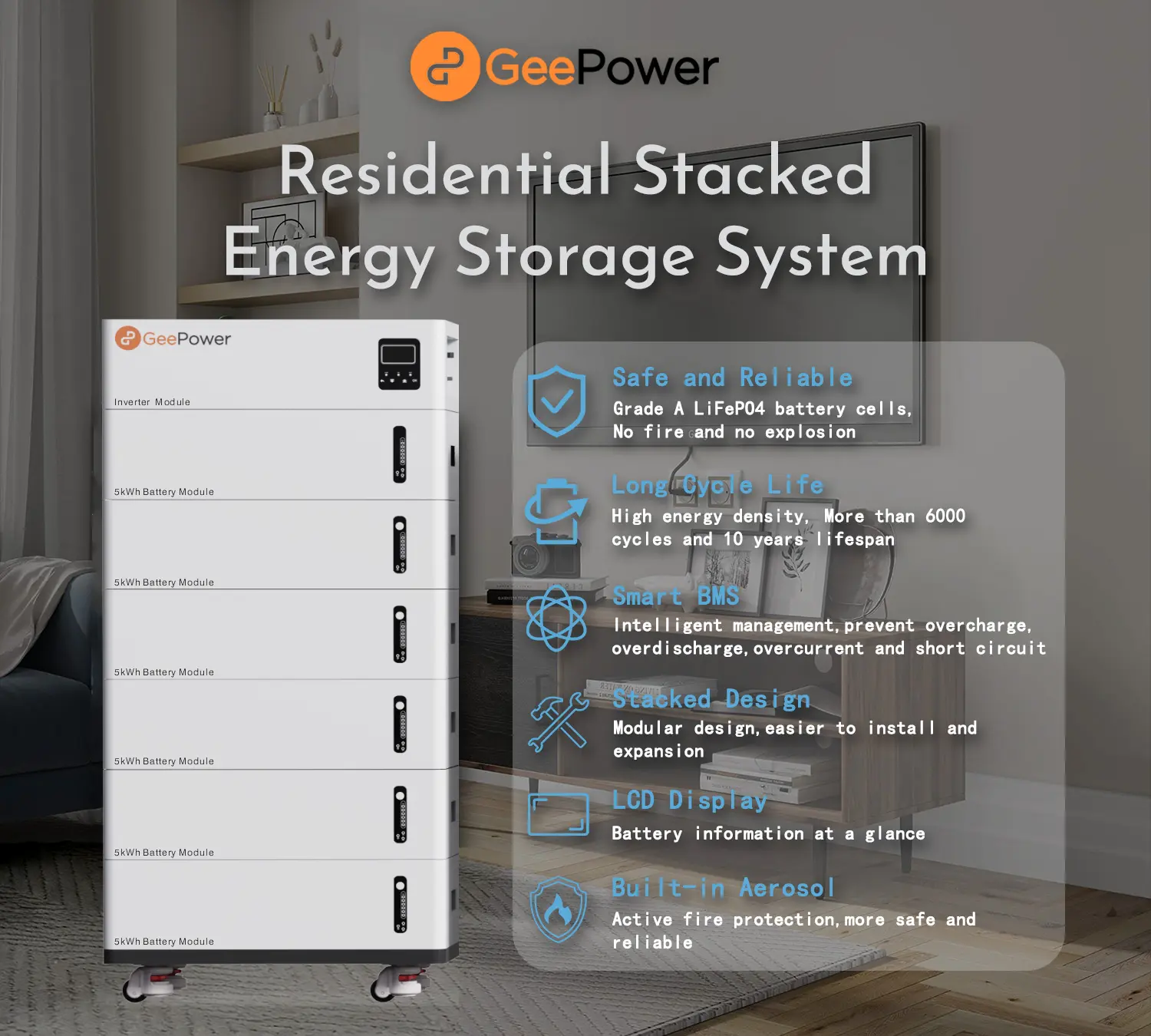

A modular, smart, and safe home battery system that helps households reduce electricity costs, integrate solar energy, and provide reliable backup power when needed.​​​

Why Terra A-Series?

You don’t need solar to save money

Charge your battery from the grid during off-peak periods and use stored energy at peak times to lower your bills.

Smart energy management

Schedule charging and discharging via the integrated inverter interface. Store energy when electricity is cheap and deploy it when prices are high.

Backup power & reliability

Protect your home from outages and price spikes. The system ensures critical loads stay powered while keeping costs down.

Flexible & scalable

Modular design allows capacity expansion from 5 kWh to 30 kWh as your energy needs grow. Works with or without solar panels.

Safe & sustainable

Thermally stable LiFePO4 battery with built-in fire suppression. Designed for long-term reliability and environmental responsibility.​


Benefits for Homes

  • Save on electricity bills by charging during low-cost off-peak periods.
  • Reduce reliance on grid electricity and maximise use of home-generated solar energy.
  • Reliable backup during outages ensures essential loads stay powered.
  • Safe indoor installation thanks to thermally stable batteries and integrated fire suppression.
  • Scalable solution to grow with your household energy requirements.

Explore the Terra A-Series

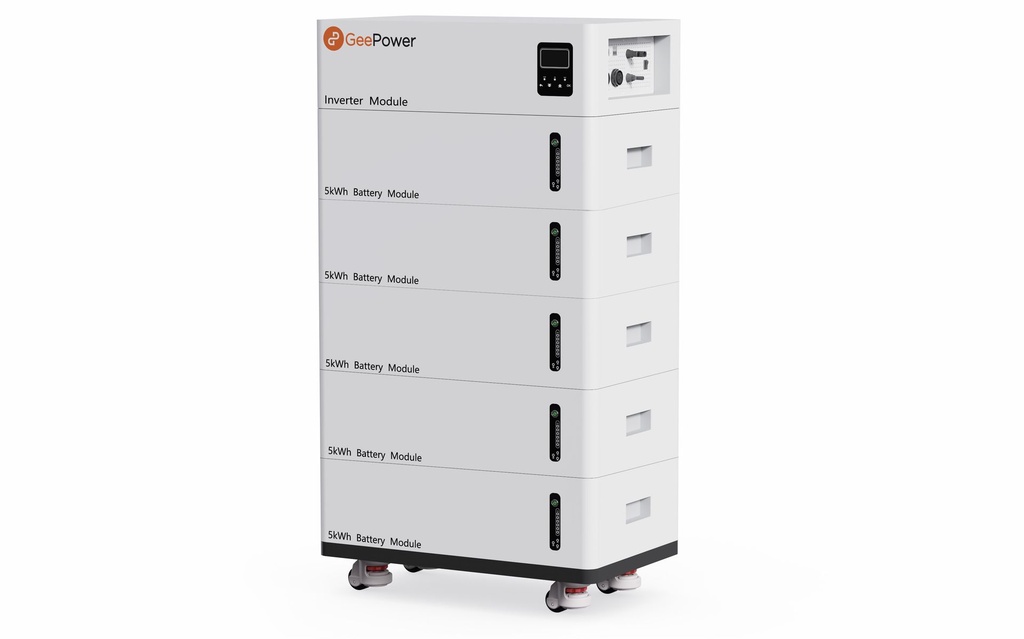

Whether you need 5 kWh for a small home or 30 kWh for a large household, Terra A-Series can be configured to meet your energy needs. Its modular, stackable design ensures future expansion without disruption.

​

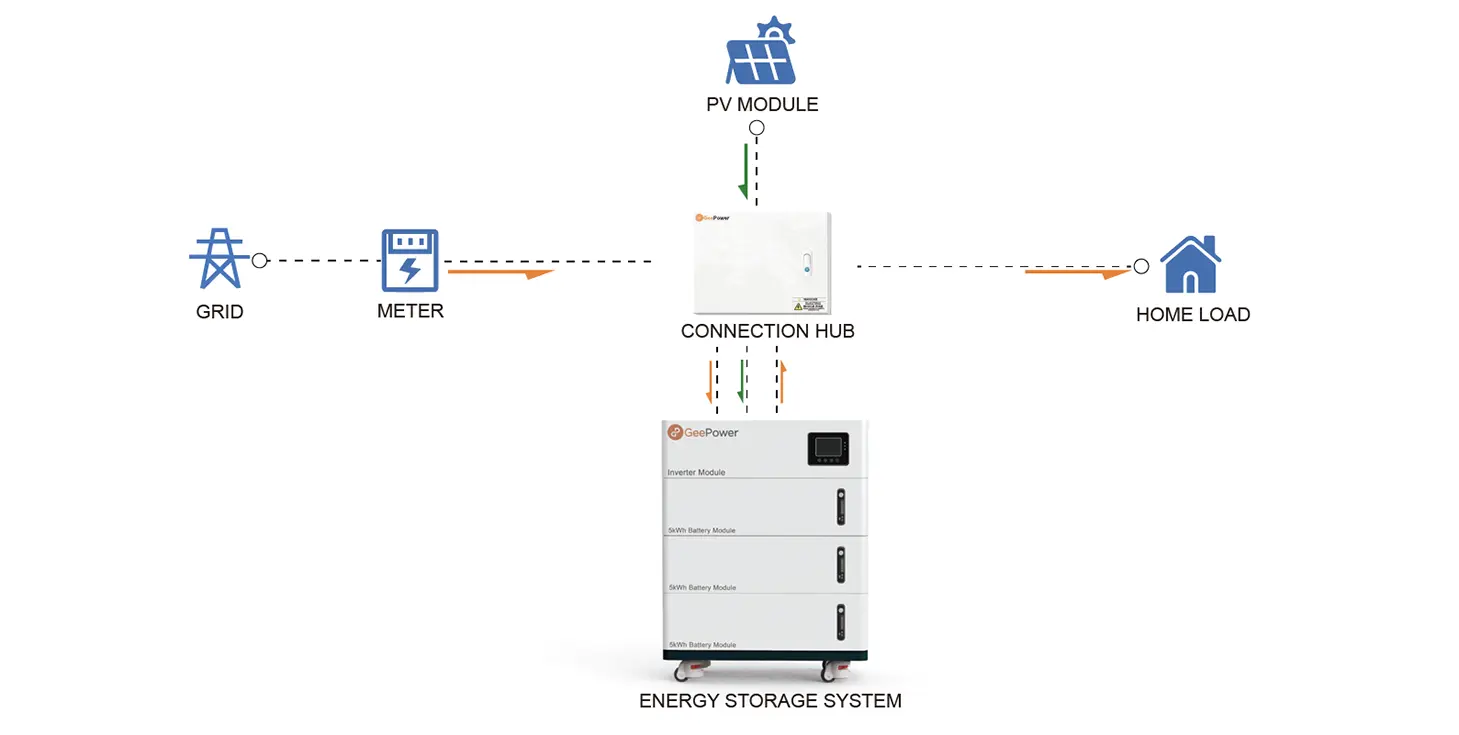

How It Works

Grid Charging – Automatically charges during off-peak electricity periods.

Load Supply – Powers household loads during peak-demand periods or high tariffs.

Backup Mode – Supplies essential circuits during grid outages.

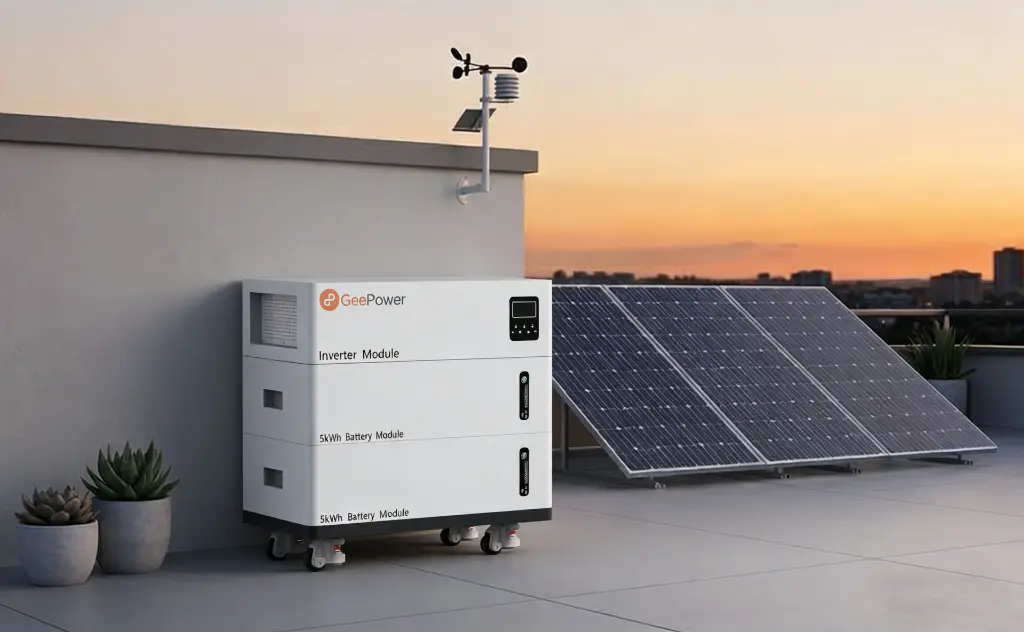

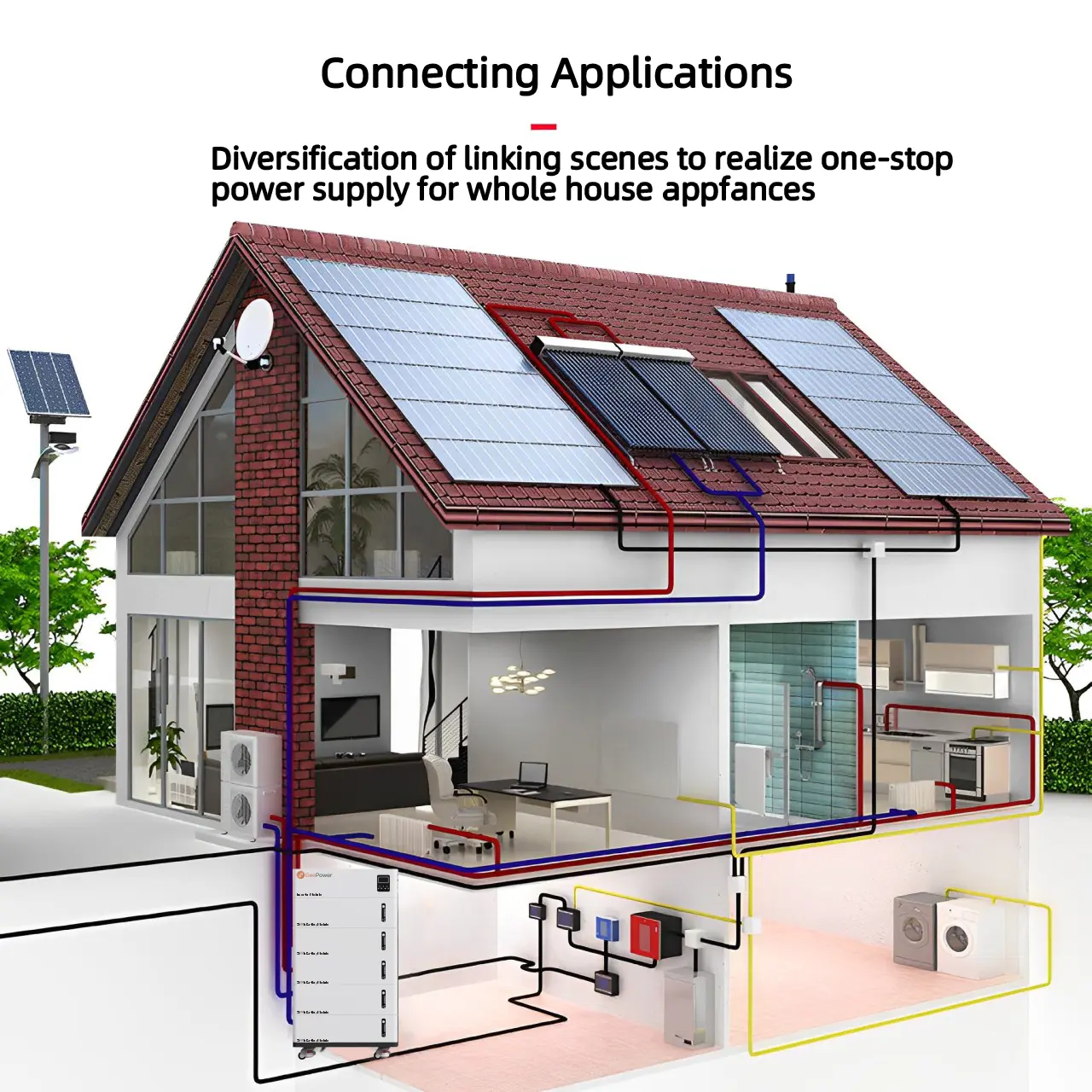

Optional Solar Integration – Solar energy can supply loads directly or charge the battery.

Energy Scheduling – Configure charge/discharge settings via the inverter LCD for maximum efficiency.


Energy Management in Action

  • Daytime Solar Storage  →  Use later instead of exporting to grid
  • Nighttime Off-Peak Charging  →  Lower electricity costs
  • Peak Hour Deployment  →  Reduce bills and reliance on fossil fuel electricity
  • Backup During Outages  →  Essential circuits remain powered


​

Technical Parameters

MODEL GPTE-A-51.2
AC OUTPUT
Rated Output Power 6200W
Peak Power 12400VA
Rated Output Voltage 230 Vac
Rated Output Frequency 50 / 60Hz
Nominal AC Current 27A
Max. AC Current 40A
Output Waveform Pure Sine Wave
Switch Time 10 ms
AC INPUT
Rated Grid Voltage 230 Vac (170–280 Vac)
Rated Grid Frequency 50 / 60Hz
Bypass Overload Current 40A
PV INPUT
Num. of MPPT 2
Max. PV Input Power 4500W + 4500W
Max. PV Input Current 18A + 18A
Max. PV Input Voltage 550 Vdc + 550 Vdc
MPPT Voltage Range 120 – 480 Vdc
BATTERY
Rated Capacity 5120Wh
(100Ah)		 10240Wh
(200Ah)		 15360Wh
(300Ah)		 20480Wh
(400Ah)		 25600Wh
(500Ah)		 30720Wh
(600Ah)
Qty. of Battery Modules 1 2 3 4 5 6
Nominal Voltage 51.2V
Discharge Voltage Range 44V-56.4V
Standard Charge Current 50A
Max. Charge / Discharge Current 100 A
Battery Type LiFePO₄
GENERAL DATA
System Compatibility Stackable Residential ESS
Protective Class Class I
IP Rating IP20 (Indoor Use Only)
Operating Temperature Range -10°C - 55°C
Communication Interface RS485
Dimensions (L x W x H)mm 650 x 395 x 472H 650 x 395 x 652H 650 x 395 x 832H 650 x 395 x 1012H 650 x 395 x 1192H 650 x 395 x 1372H
Weight(kg) 81 127.5 174 220.5 267 313.5
CERTIFICATIONS & COMPLIANCE
Inverter Module EN IEC 62109-1; EN IEC 62109-2
Battery Module IEC 62619; UN38.3; MSDS
System EN IEC 62477-1; EN IEC 61000-6-1; EN IEC 61000-6-3: G99 (UK Grid Code); UKCA; EU RoHS

Contact us today to find the perfect configuration for your home and start saving on your electricity bills while increasing your energy security.

Configure Your Terra A-System
