Luna B Series 10 kWh Wall-Mounted Battery – Residential Energy Storage with Smart BMS
10kWh Energy Storage – Ideal for residential energy management, solar storage and backup power applications.
Safe LiFePO4 Battery Technology – Built with high-quality cells for stable performance, long cycle life and enhanced safety.
Wall-Mounted Space-Saving Design – Compact structure for flexible indoor installation without occupying floor space.
Smart LCD Monitoring – Real-time display of battery status, voltage, current and operating information.
Modular & Expandable Capacity – Supports scalable energy storage configurations for growing energy needs.
Smart BMS Protection – Provides protection against overcharge, over-discharge, short circuit and temperature risks.
Wide Compatibility – Compatible with solar inverters, hybrid systems and home energy management platforms.
Luna B Capacity Options & Key Specifications
Luna-B Series
Luna B uses a wall-mounted modular design with a 10 kWh battery capacity, providing a compact and efficient energy storage solution for residential applications. Select the system capacity based on household energy consumption, solar generation and backup requirements.
Expansion guidance:For future energy needs, multiple Luna B units can be connected in parallel to increase overall storage capacity. Additional batteries should be installed following GeePower’s official installation guidance to ensure system compatibility, performance and safety.
Key System Specifications
Specification | Value |
Rated Energy | 10240 Wh |
Rated Capacity | 200 Ah |
Nominal Voltage | 51.2 V |
Discharge Voltage Range | 40–58.4 V |
Max. Charge / Discharge Current | 200 A |
Battery Type | LiFePO₄ |
Installation Type | Wall-mounted |
Protective Class | Class 1 |
IP Rating | IP20 (Indoor Use Only) |
Operating Temperature | −10°C to 55°C |
Communication Interface | RS485 |
Compliance & Standards | CE; UN38.3; MSDS |
Key Advantages
Smart Charge & Discharge Scheduling
Set charging and discharging times around local peak and off-peak electricity periods. This helps households use lower-cost energy more effectively and reduce reliance on the grid during expensive peak hours.
Compliance for Market Access and Transport
CE, RoHS, UKCA, G99 and MSDS documentation support key requirements across product compliance, grid connection and transportation—helping distributors and installers enter target markets with greater confidence.
Space-Saving Wall-Mounted Design
Compact wall-mounted structure saves valuable floor space and allows flexible installation in homes, garages and utility rooms.
Multi-Layer Battery Safety
Thermally stable LiFePO₄ battery chemistry, intelligent BMS protection and a built-in fire detection and early-warning module provide multiple layers of protection for reliable residential operation.
10-Year Battery Warranty
A 10-year battery warranty provides long-term product assurance and greater confidence for homeowners, installers and distribution partners.
Is Luna B the Right System for Your Project?
Time-of-Use Energy Savings
Charge the battery during off-peak hours and use stored energy when electricity rates are higher, helping reduce household energy costs.
Solar Energy Storage
Store excess solar energy generated during the day and use it to power the home in the evening or at night.
Extended Backup Power
Provide longer-lasting backup power for essential household loads during grid outages or extended off-grid periods.
Flexible Future Expansion
Start with the capacity you need today and add battery modules later as household energy demand grows.
Space-Saving All-in-One Design
The integrated battery and inverter design requires less installation space, simplifies system setup and reduces installation complexity.
Homes and Small Businesses
Suitable for residential properties and small commercial premises such as guesthouses, cafés and flower shops.

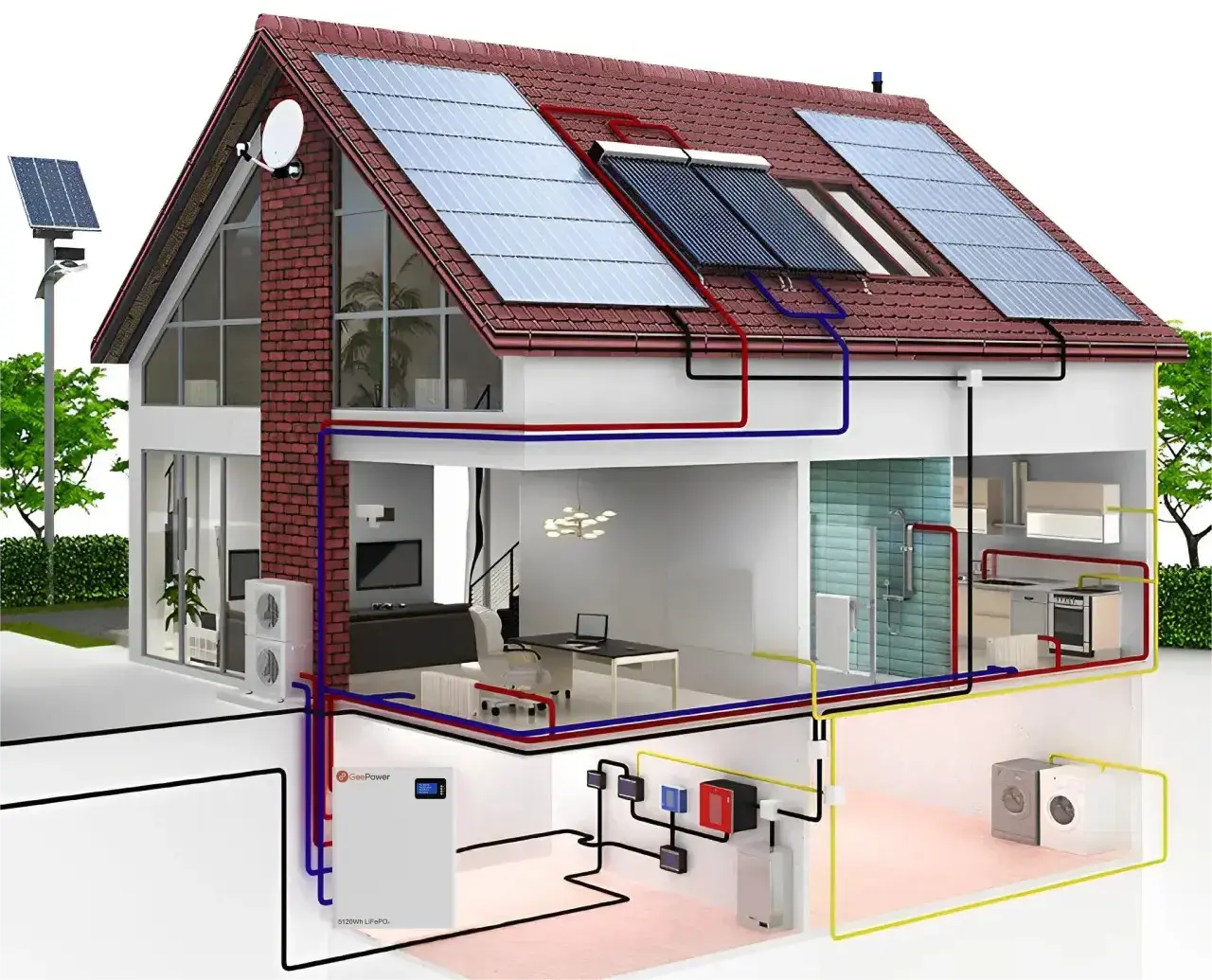

How Terra A Works
Energy Management in Action
Daytime Solar Storage → Use later instead of exporting to grid
Nighttime Off-Peak Charging → Lower electricity costs
Peak Hour Deployment → Reduce bills and reliance on fossil fuel electricity
Backup During Outages → Essential circuits remain powered
Save Money. Save Energy. Stay in Control.
A compact, safe, and expandable wall-mounted home battery system that helps households store solar energy, optimise daily electricity use, and keep essential power available when needed.
UK Compliance & Installation Notes
For UK residential applications, Luna B system design, installation location, wiring, battery configuration, grid connection, backup setup and any export limitation or non-export operation must be assessed and implemented by qualified professionals in accordance with applicable UK electrical regulations, ENA Engineering Recommendations such as G98/G99 where applicable, DNO requirements, GeePower’s official installation guidance, and the requirements of compatible inverter and protection equipment.
The performance of energy storage, backup power availability, charging and discharging operation, and integration with solar PV systems depend on the final system configuration, site conditions, approved connection method and qualified installation.
Luna A Series 5 kWh Wall-Mounted Battery – Residential Energy Storage with Smart BMS
Luna C Series ECO 16 kWh Rolling Floor Battery – High-Capacity Residential Energy Storage
Terra B Series 5–20 kWh Stacked Home ESS – LiFePO4 Battery for Scalable Energy Storage
Terra C Series 16–32 kWh Residential ESS – Modular LiFePO4 Battery with 11 kW Inverter
Discuss Your Luna B Requirements
Tell us your target market, required capacity, inverter requirements, certification needs and estimated order quantity. Our team will help you evaluate the appropriate configuration.
