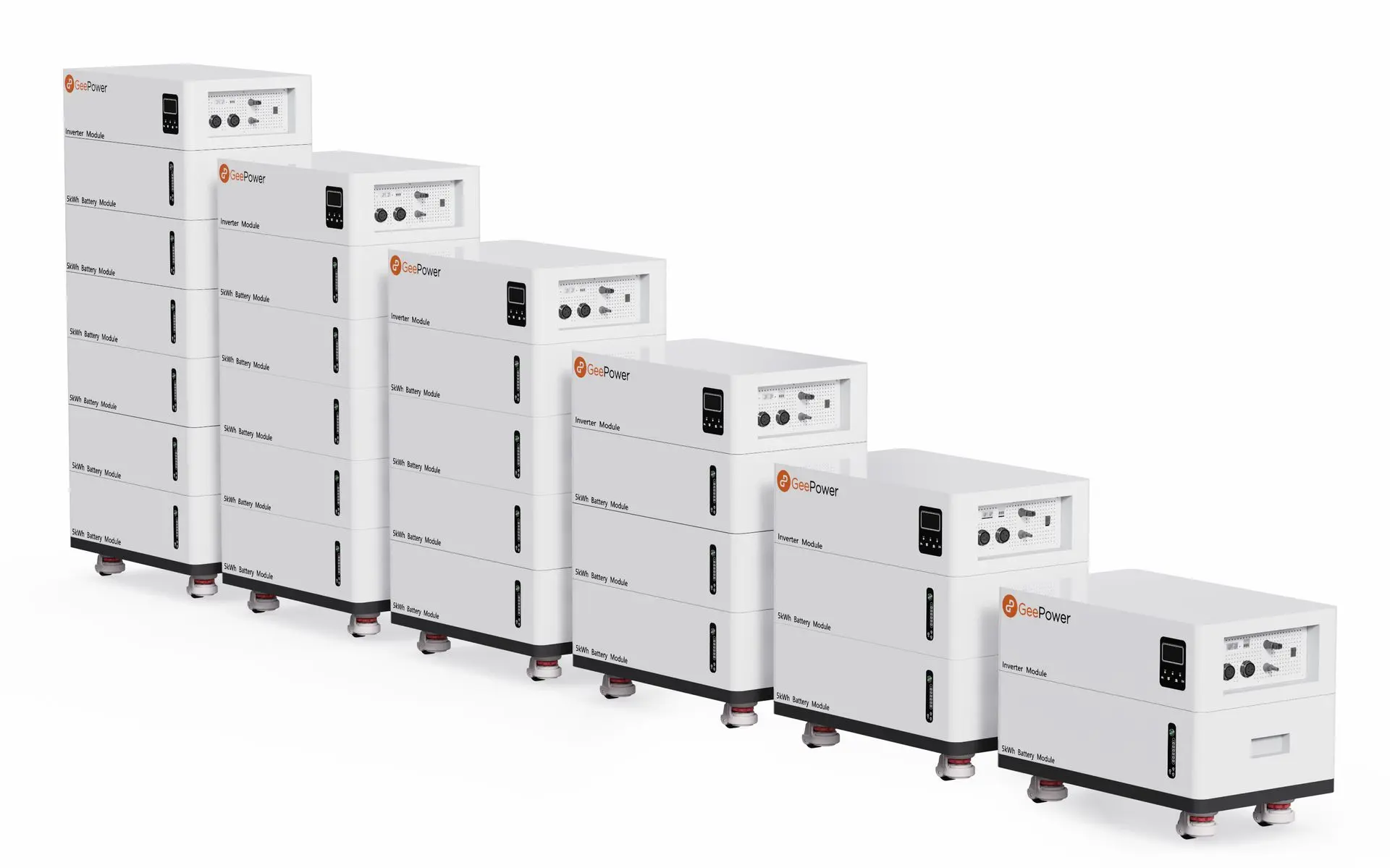

Terra A Series 5–30kWh Residential ESS Specification
View and download the official specification sheet for GeePowerESS Terra A Series, a modular residential energy storage system with integrated inverter, LiFePO4 battery modules, smart scheduling, and grid or solar charging support.
What This Specification Sheet Includes
This Terra A Series specification sheet provides the key technical information needed for early product evaluation, project comparison, and installation planning.
It includes system overview, working diagram, front panel interface, side panel connections, battery LED indicators, technical specifications, product dimensions, compliance information, and standard accessories.
Included in this document:
- Product overview and typical working diagram
- User interface and front panel indicators
- AC input, AC output, PV input, and battery specifications
- Battery capacity options from 5.12kWh to 30.72kWh
- Product dimensions and system weight by configuration
- Communication, protection, and operating environment data
- Compliance references including G99, UKCA, IEC, RoHS, UN38.3, and MSDS
- Packing details and standard accessories
Key Technical Highlights
| Item | Terra A Series Specification |
| Model | GPTE-A-51.2 |
| Battery Chemistry | LiFePO4 |
Rated Capacity | 5.12kWh / 10.24kWh / 15.36kWh / 20.48kWh / 25.60kWh / 30.72kWh |
Battery Modules | 1–6 modules |
Rated Output Power | 6,200W |
Peak Power | 12,400VA |
Rated Output Voltage | 230Vac |
Output Waveform | Pure sine wave |
PV Input | Dual MPPT, 4,500W + 4,500W |
Communication | RS485 |
Installation Environment | Indoor use only, IP20 |
Operating Temperature | -10℃ to 55℃ |
Compliance | G99, UKCA, IEC, EU RoHS, UN38.3, MSDS |
Who Should Download This Specification?
This document is useful for homeowners, installers, distributors, EPC partners, and energy consultants who need to evaluate whether Terra A Series is suitable for residential battery storage projects.
You may need this specification if you are:
- Comparing home battery systems for residential projects
- Checking battery capacity and inverter output requirements
- Planning a solar-plus-storage or grid-charged battery solution
- Reviewing UK or EU compliance requirements
- Preparing a quotation, proposal, or technical comparison
- Confirming product dimensions before installation planning
Need the User Manual?
The user manual includes installation, commissioning, operation, maintenance, and safety instructions. To ensure the correct document version is provided for your project, please submit a request with your product model and contact details.
Need Help Choosing the Right Home ESS Configuration?
GeePowerESS can support residential ESS selection, battery capacity planning, solar integration, backup load evaluation, and distributor project quotation.
