Luna C Series ECO 16 kWh Rolling Floor Battery – High-Capacity Residential Energy Storage
High-Capacity 16 kWh Storage – Built with 51.2V 314Ah LiFePO4 battery cells, providing reliable energy storage for high-demand homes and backup applications.

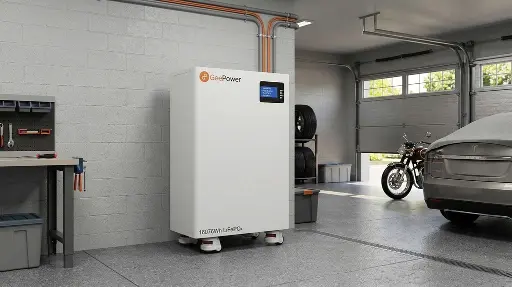

Wheel-Design Mobility – Integrated wheels allow easy indoor movement and flexible placement without complex installation.
Expandable Energy Capacity – Supports parallel connection to expand storage capacity for larger residential energy needs.
Smart Monitoring & Control – LCD display provides real-time information on battery status, charge level, voltage, current and system operation.
Safe & Reliable LiFePO4 Technology – Built-in protection against overcharge, over-discharge, short circuit and thermal risks for stable operation.
Flexible System Integration – Compatible with solar systems, hybrid inverters and home energy management platforms for versatile applications.
Luna C Capacity Options & Key Specifications
Luna-C Series
Luna C uses a high-capacity floor-standing design with a 16 kWh battery module, providing a compact and flexible energy storage solution for households with higher energy demands. Select the system capacity based on household consumption, solar generation and backup requirements.
Mobility guidance: Luna C features an integrated wheel design for easier indoor movement and flexible placement. For larger energy storage requirements, multiple units can be connected in parallel following GeePower’s official installation guidance and system compatibility requirements.
Key System Specifications
Specification | Value |
Rated Energy | 16,076 Wh |
Rated Capacity | 314 Ah |
| Nominal Voltage | 51.2 V |
Discharge Voltage Range | 40–58.4 V |
Max. Charge / Discharge Current | 200 A |
| Battery Type | LiFePO₄ |
Installation Type | Floor-standing (with wheels) |
Protective Class | Class 1 |
IP Rating | IP20 (Indoor Use Only) |
Operating Temperature | −10°C to 55°C |
Communication | RS485 |
Compliance & Standards | CE; UN38.3; MSD |
Key Advantages
Smart Charge & Discharge Scheduling
Set charging and discharging times around local peak and off-peak electricity periods. This helps households use lower-cost energy more effectively and reduce reliance on the grid during expensive peak hours.
Compliance for Market Access and Transport
CE, RoHS, UKCA, G99 and MSDS documentation support key requirements across product compliance, grid connection and transportation—helping distributors and installers enter target markets with greater confidence.
Large Capacity & Flexible Placement
With a 16kWh battery capacity and floor-standing design, Luna C delivers extended energy storage while allowing easier indoor positioning and installation flexibility.
Multi-Layer Battery Safety
Thermally stable LiFePO₄ battery chemistry, intelligent BMS protection and a built-in fire detection and early-warning module provide multiple layers of protection for reliable residential operation.
10-Year Battery Warranty
A 10-year battery warranty provides long-term product assurance and greater confidence for homeowners, installers and distribution partners.
Is Luna C the Right System for Your Project?
Time-of-Use Energy Savings
Charge the battery during off-peak hours and use stored energy when electricity rates are higher, helping reduce household energy costs.
Solar Energy Storage
Store excess solar energy generated during the day and use it to power the home in the evening or at night.
Extended Backup Power
Provide longer-lasting backup power for essential household loads during grid outages or extended off-grid periods.
Flexible Future Expansion
Start with the capacity you need today and add battery modules later as household energy demand grows.
Space-Saving All-in-One Design
The integrated battery and inverter design requires less installation space, simplifies system setup and reduces installation complexity.
Homes and Small Businesses
Suitable for residential properties and small commercial premises such as guesthouses, cafés and flower shops.
How Luna Works
Energy Management in Action
Daytime Solar Storage → Use later instead of exporting to grid
Nighttime Off-Peak Charging → Lower electricity costs
Peak Hour Deployment → Reduce bills and reliance on fossil fuel electricity
Backup During Outages → Essential circuits remain powered
Save Money. Save Energy. Stay in Control.
A modular, smart, and safe home battery system that helps households reduce electricity costs, integrate solar energy, and provide reliable backup power when needed.
UK Compliance & Installation Notes
For UK residential applications, Luna C system design, installation location, wiring, battery configuration, grid connection, backup setup and any export limitation or non-export operation must be assessed and implemented by qualified professionals in accordance with applicable UK electrical regulations, ENA Engineering Recommendations such as G98/G99 where applicable, DNO requirements, GeePower’s official installation guidance, and the requirements of compatible inverter and protection equipment.
The available energy storage capacity, backup power performance, charging and discharging operation, parallel system expansion and integration with solar PV systems depend on the final system configuration, compatible equipment selection, site conditions, approved connection method and qualified installation.
