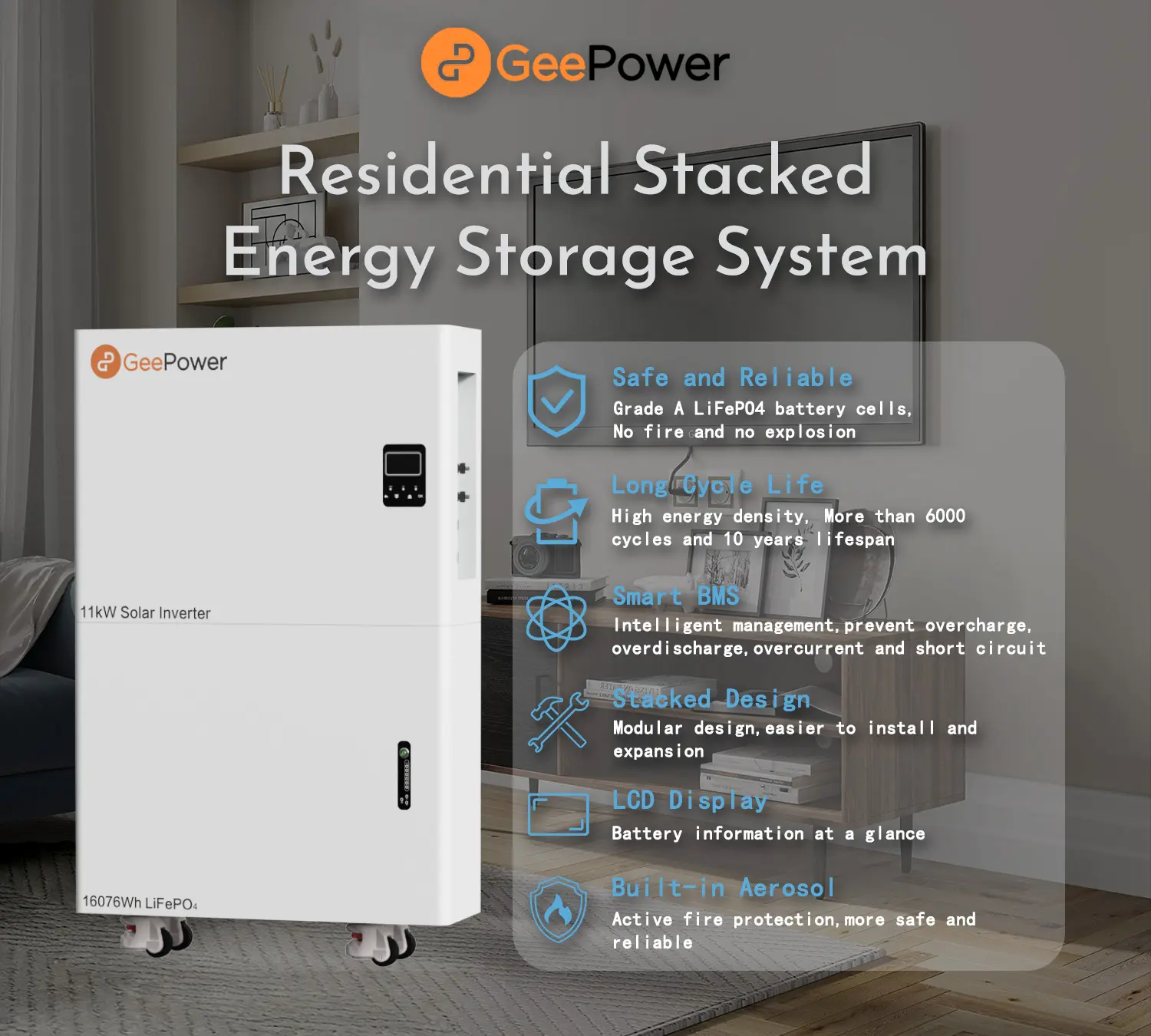

Terra C Series 16–32 kWh Residential ESS – Modular LiFePO4 Battery with 11 kW Inverter
Available Capacities：16 kWh | 32 kWh
Powerful 11kW Inverter – Higher output power supports more household appliances and higher energy demand.
Large-Capacity Battery Module – 16kWh battery module provides extended energy storage and longer backup duration.
Flexible Wheel Design – Built-in wheels enable easier movement and flexible installation placement.
Solar & Grid Compatible – Supports solar integration and grid charging for efficient energy management.
Safe & Reliable LiFePO4 Battery – High-stability battery chemistry with 6000+ cycles for long-term performance.
Request a Quote
Terra C Capacity Options & Key Specifications
Flexible · Scalable · Reliable
TERRA C Series
Terra C uses a high-capacity modular design with 16kWh battery modules, available in 16kWh and 32kWh configurations. Select the suitable capacity based on household energy consumption, power demand and backup requirements.
Expansion guidance: For optimal system performance and battery consistency, please follow GeePower’s official installation guidance when expanding or configuring the system. The final system capacity should be determined according to site conditions, energy usage patterns and installation requirements.
Key System Specifications
Specification | Value |
Rated Output Power | 11 kW |
Battery Capacity Options | 16.08 / 32.15 kWh |
Battery Modules | 1-2 modules |
Battery Type | LiFePO₄ |
Max. Charge / Discharge Current | 200 A |
Maximum PV Input | 9 kW（4.5 kW × 2 MPPT） |
MPPT Voltage Range | 120–500 Vdc |
Rated Output | 230 Vac, 50/60 Hz |
Backup Switch Time | 10 ms |
Installation | Indoor only (IP20） |
Operating Temperature | −10°C to 55°C |
Communication | RS485 |
Key Advantages
Smart Charge & Discharge Scheduling
Set charging and discharging times around local peak and off-peak electricity periods. This helps households use lower-cost energy more effectively and reduce reliance on the grid during expensive peak hours.
Compliance for Market Access and Transport
CE, RoHS, UKCA, G99 and MSDS documentation support key requirements across product compliance, grid connection and transportation—helping distributors and installers enter target markets with greater confidence.
Modular, Stackable Design
Start with the capacity you need and expand as energy demand grows. The stackable battery modules enable flexible system configuration from 16 to 32 kWh.
Multi-Layer Battery Safety
Thermally stable LiFePO₄ battery chemistry, intelligent BMS protection and a built-in fire detection and early-warning module provide multiple layers of protection for reliable residential operation.
10-Year Battery Warranty
A 10-year battery warranty provides long-term product assurance and greater confidence for homeowners, installers and distribution partners.
Is Terra C the Right System for Your Project?
Time-of-Use Energy Savings
Charge the battery during off-peak hours and use stored energy when electricity rates are higher, helping reduce household energy costs.
Solar Energy Storage
Store excess solar energy generated during the day and use it to power the home in the evening or at night.
Extended Backup Power
Provide longer-lasting backup power for essential household loads during grid outages or extended off-grid periods.
Flexible Future Expansion
Start with the capacity you need today and add battery modules later as household energy demand grows.
Space-Saving All-in-One Design
The integrated battery and inverter design requires less installation space, simplifies system setup and reduces installation complexity.
Homes and Small Businesses
Suitable for residential properties and small commercial premises such as guesthouses, cafés and flower shops.
How Terra C Works
Energy Management in Action
Daytime Solar Storage → Use later instead of exporting to grid
Nighttime Off-Peak Charging → Lower electricity costs
Peak Hour Deployment → Reduce bills and reliance on fossil fuel electricity
Backup During Outages → Essential circuits remain powered
Save Money. Save Energy. Stay in Control.
A modular, smart, and safe home battery system that helps households reduce electricity costs, integrate solar energy, and provide reliable backup power when needed.
UK Compliance & Installation Notes
For UK residential applications, Terra C system design, installation location, wiring, backup configuration, grid connection, export limitation or non-export operation must be assessed and implemented by qualified professionals in accordance with applicable UK electrical regulations, ENA Engineering Recommendations such as G98/G99 where applicable, DNO requirements, GeePower’s official installation guidance, and the requirements of compatible inverter and protection equipment.
The availability of backup power, automatic switching, critical-load support and energy-cost optimisation depends on the final system configuration, selected battery capacity, site conditions, approved connection method and qualified installation.
